The Complete Guide to 3PL Tractor Tow Hitches: What Australian Farmers Need to Know
Whether you're managing a large cropping property in Queensland or running a mixed-farming operation in regional New South Wales, having the right tractor attachment can make or break your productivity. One of the most essential — yet often overlooked — pieces of farming equipment is the 3PL tractor tow hitch (also known as a three-point linkage hitch or 3-point hitch). In this guide, we'll break down exactly what a 3PL tow hitch does, why it matters, and what to look for when buying one for your Australian farming operation.
6/11/20264 min read
What Is a 3PL Tractor Tow Hitch?

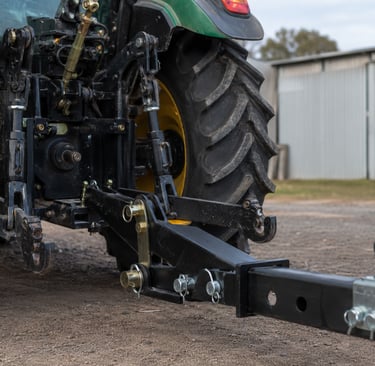

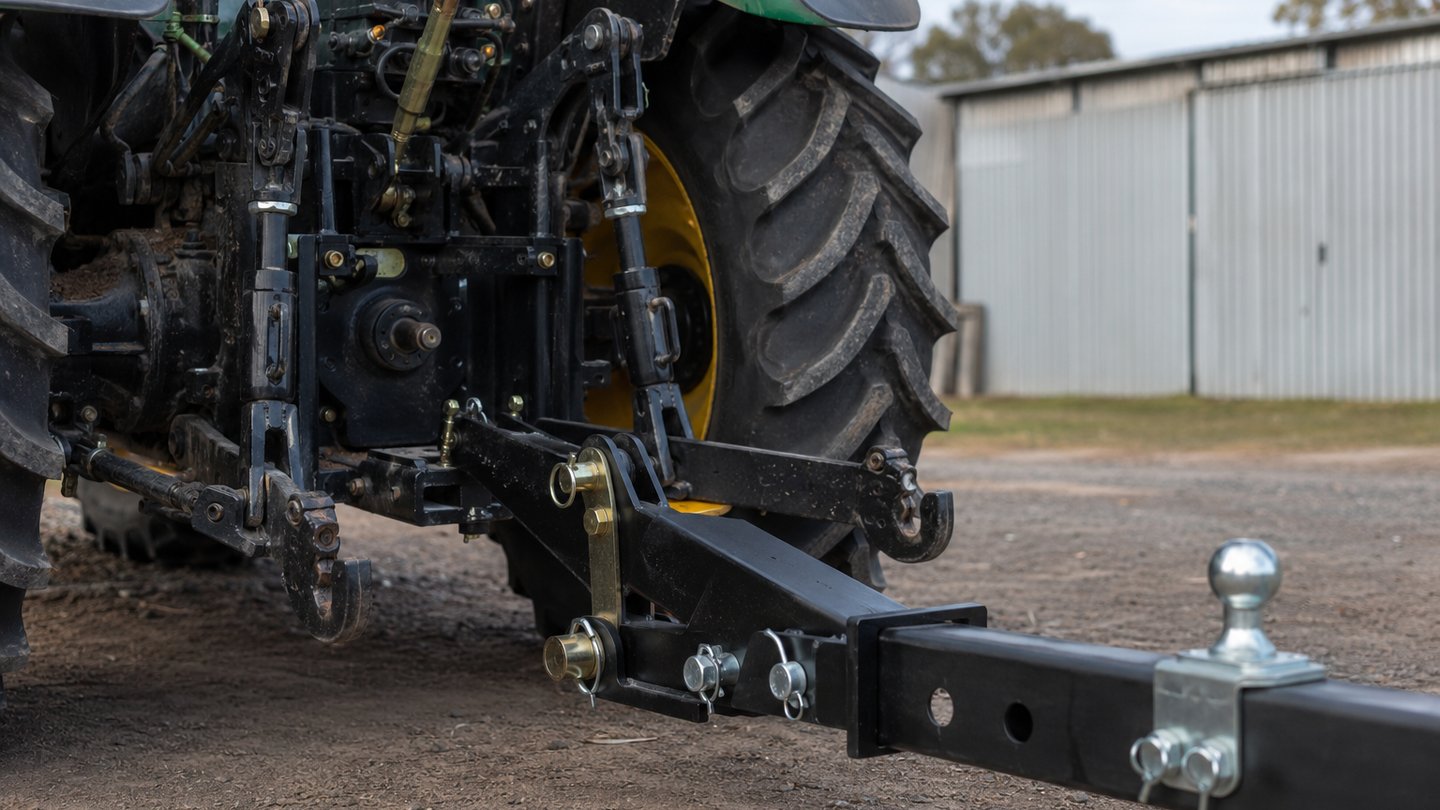

A 3PL tractor tow hitch — short for 3-Point Linkage tow hitch — is a heavy-duty attachment system mounted at the rear of a tractor. It connects implements, trailers, and farming tools to the tractor through three points of linkage: two lower arms and one top link.
This system allows farmers to easily attach and detach equipment in seconds, and to raise or lower implements hydraulically while in motion — making it ideal for everything from towing trailers and slashers to carrying spray units and seeders.
Why the 3PL Hitch Is the Backbone of Modern Farming
The three-point linkage system was originally developed by Harry Ferguson in the 1920s and has since become the global standard for tractor-mounted implements. Here's why Australian farmers still rely on it today:
• Versatility: A single 3PL hitch can support dozens of different implements — from post-hole diggers and bale spears to fertiliser spreaders and slashers.
• Stability: The three-point connection distributes the load evenly, reducing stress on both the tractor and the attachment, especially on uneven terrain.
• Hydraulic control: Most 3PL hitches integrate directly with the tractor's hydraulic system, allowing precise depth and height adjustment without leaving the cab.
• Industry standardisation: Australian farming equipment is built around standardised Category 1 and Category 2 hitch sizes, meaning your implements can work across different tractor brands.
3PL Tow Hitch vs Standard Tow Bar — What's the Difference?
Many farmers ask whether they can use a standard tow bar for towing implements. While tow bars are suitable for towing trailers on roads, the 3PL hitch offers major advantages for in-field use:
• Load transfer: A 3PL hitch transfers weight onto the tractor's rear axle, improving traction in soft or muddy paddocks.
• Implement control: Tow bars don't allow hydraulic height adjustment — essential for ground-engaging tools.
• Stability at low speeds: 3PL hitches are designed for low-speed, high-load farm work, whereas tow bars are built for road transport.
For serious farming operations, a quality 3PL tow hitch is not optional — it's fundamental.
What to Look For When Buying a 3PL Tractor Tow Hitch in Australia
Not all 3PL hitches are created equal. Here are the key factors to consider when purchasing one:
1. Category Rating
3PL hitches come in different categories (Cat 1, Cat 2, Cat 3) based on the size and horsepower of the tractor. Most medium-duty farm tractors use Category 2, while larger machinery requires Category 3. Always match the hitch category to your tractor specification.
2. Material and Build Quality
Look for heavy-duty steel construction with corrosion protection. Australian farming conditions — UV exposure, dust, moisture, and chemical contact — are tough on equipment. A well-built hitch should last decades with minimal maintenance.
3. Weight Capacity
Your hitch must safely handle the maximum load of your heaviest implement or towed trailer. Always check the rated lift capacity and ensure it exceeds your requirements with a safe margin.
4. Ease of Connection
Quick-hitch systems allow single-operator attachment without manual pin adjustment. This is a huge time-saver during planting or harvest seasons when implements need to be swapped frequently.
5. Compatibility
Ensure the hitch is compatible with your tractor's hydraulic outlet points and top link bracket. Australian Standards (AS 4082) govern 3PL equipment, so look for compliant products.
Gro Global's 3PL Tractor Tow Hitch — Built for Australian Conditions

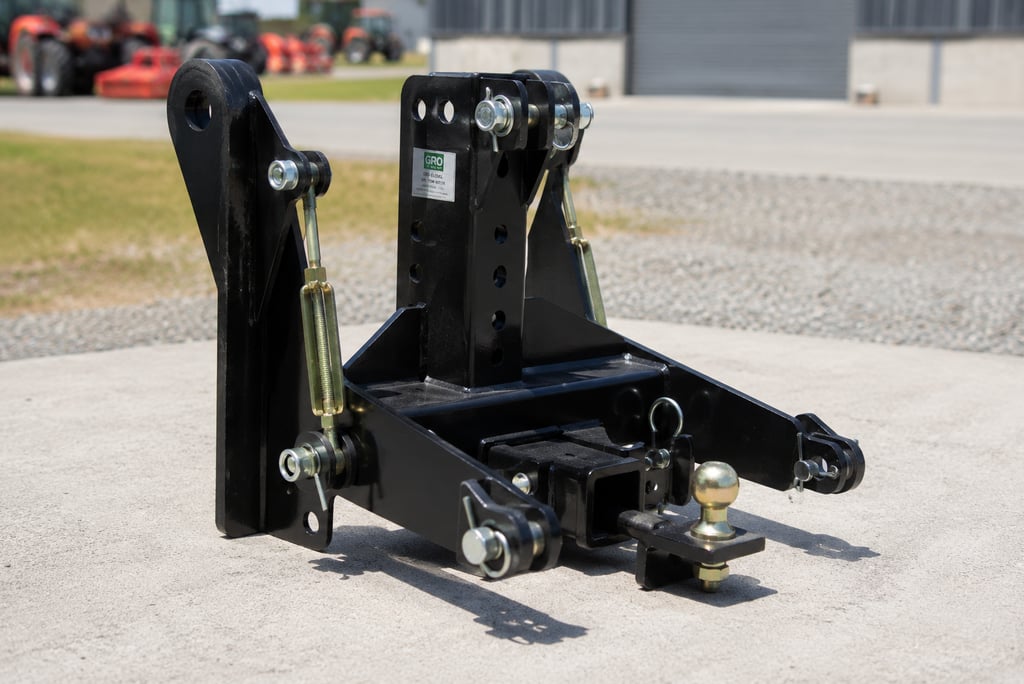

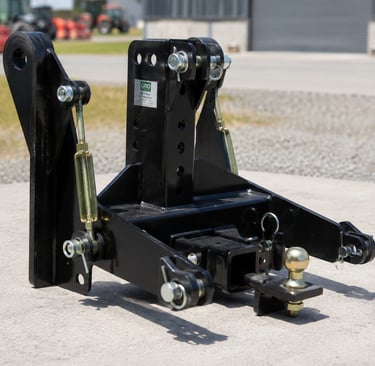

At Gro Global Distributors, our 3PL Tractor Tow Hitch is engineered for the demands of real Australian farms. Designed for heavy-duty use, our hitch features:
• Heavy-gauge steel construction for maximum durability
• Precision-machined connection points for a secure, rattle-free fit
• Compatibility with standard Category 2 tractors
• Corrosion-resistant finish to withstand harsh Australian outdoor conditions
• Easy installation with standard hardware included

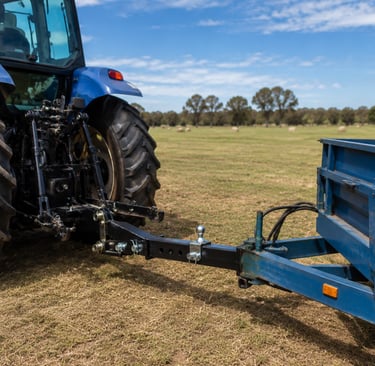

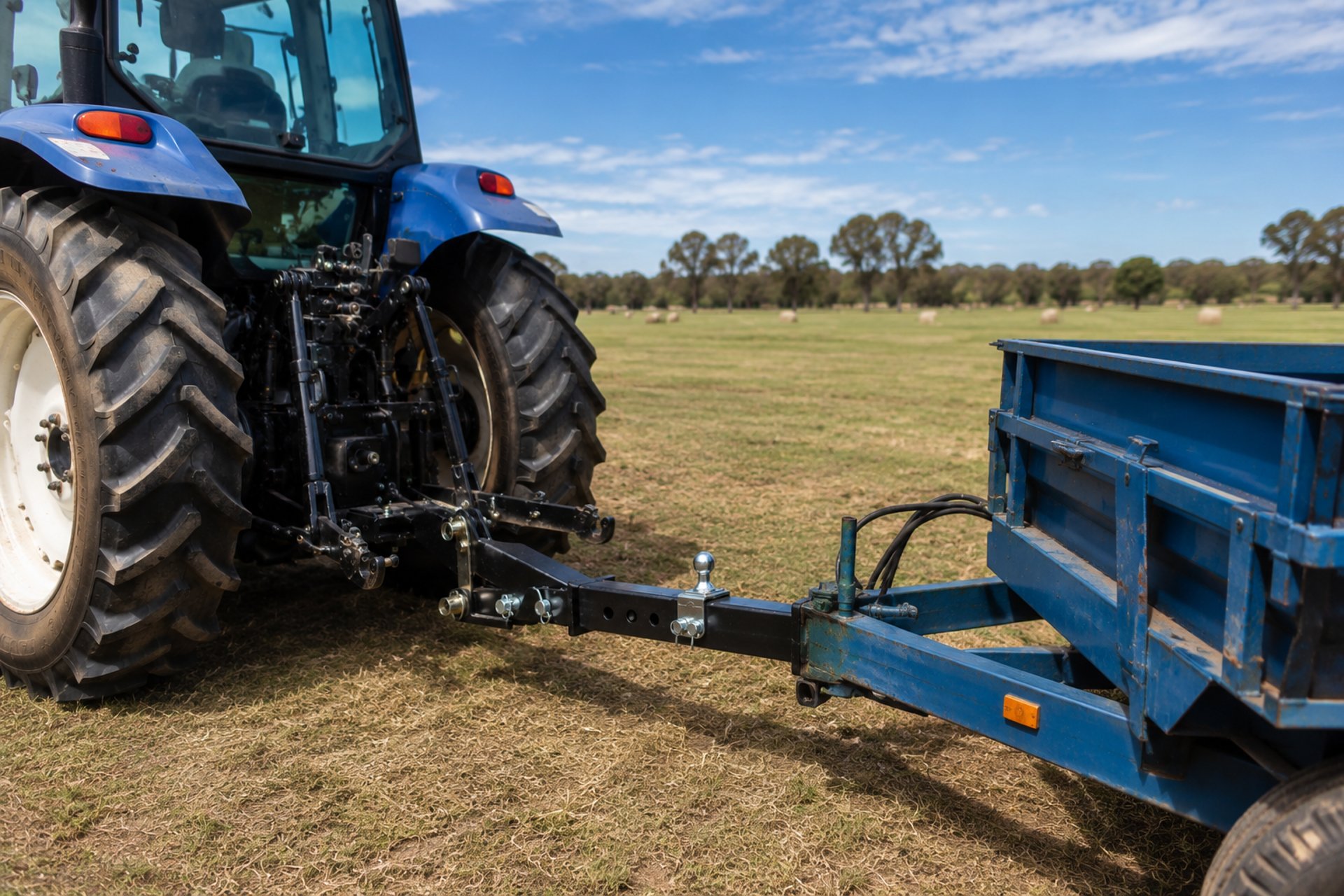

Whether you're towing trailers across a broad-acre farm or connecting a slasher on a lifestyle block, our 3PL hitch delivers the reliability and strength you need.
Ready to upgrade your tractor setup? Visit groglobal.com.au or call us on +614 5022 3173 to order your Gro Global 3PL Tractor Tow Hitch today. We deliver Australia-wide.
Frequently Asked Questions (FAQs)
Q: What does 3PL stand for in farming?
A: 3PL stands for Three-Point Linkage, which is a standardised system for attaching implements and accessories to the rear of a tractor using two lower lift arms and one upper top link.
Q: What's the difference between Category 1 and Category 2 3PL hitches?
A: The main difference is size and load capacity. Category 1 hitches are designed for smaller tractors (under 45HP), while Category 2 suits medium tractors (45–120HP). Always match your hitch category to your tractor's horsepower and manufacturer specifications.
Q: Can I use a 3PL tow hitch on any brand of tractor?
A: Yes — three-point linkage is an internationally standardised system. A quality 3PL hitch from Gro Global is designed to be compatible across major tractor brands including John Deere, Kubota, New Holland, Massey Ferguson, and more (Category 2).
Q: How do I maintain my 3PL tow hitch?
A: Regular greasing of all pivot points, checking for wear on the pins and bushes, and cleaning off chemical and soil residue after each use will significantly extend the life of your hitch. Inspect welds and structural integrity at least once per season.
Q: Does Gro Global ship 3PL tow hitches across Australia?
A: Yes! Gro Global Distributors offers nationwide delivery across Australia. We're based in Salisbury, Brisbane, QLD and ship to all states and territories. Contact us at sales@groglobalaus.com or +614 5022 3173 for freight quotes and order enquiries.
Q: Is the Gro Global 3PL Tow Hitch suitable for heavy-duty farm use?
A: Absolutely. Our 3PL Tractor Tow Hitch is built from heavy-gauge steel with a corrosion-resistant finish specifically for demanding Australian farm environments. It is designed for regular, heavy-duty use season after season.
Written by the team at Gro Global Distributors — your trusted Australian agricultural supply partner.
